Compass Health Meridian SatinAir APM System

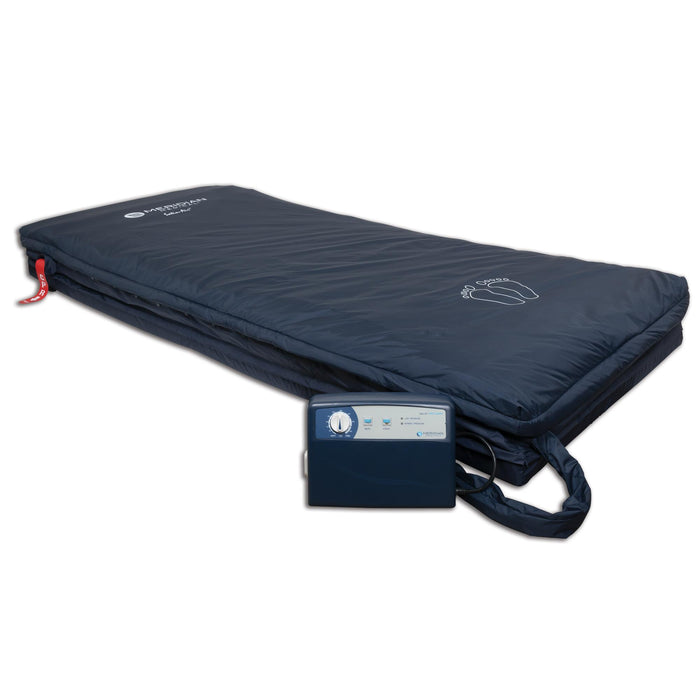

Meridian SatinAir Alternating Pressure And Low Air Loss Mattress System (5" Air Mattress & 3" Foam Base)

The Meridian SatinAir + Base is an advanced therapy mattress system combining alternating pressure and low air loss to optimize pressure redistribution and manage skin maceration. Designed for stage I-IV pressure ulcer prevention and treatment, it features seventeen 5" air bladders atop a 3" high-density foam base for power outage protection. The 8 LPM pump offers static or alternating modes with adjustable comfort settings tailored to patient weight (up to 350 lbs.). A quilted, vapor-permeable nylon cover reduces shear and resists fluids, while a CPR valve enables rapid deflation. Ideal for nursing homes, hospitals, and homecare, this innovative mattress ensures patient comfort and caregiver ease.

Product Features

• Dual Therapy: Alternating pressure and low air loss prevent pressure ulcers and manage skin moisture.
• Power Outage Safety: 3" foam base prevents "bottoming out" during power loss.
• Pillow Function: Maintains air in head-section cells for enhanced patient comfort.
• Modular Design: 17 removable, replaceable 5" air cells (9 with laser holes) for easy cleaning and maintenance.
• Rapid CPR Deflation: CPR valve at the head allows quick air release in emergencies.
• Protective Cover: Quilted nylon, low-shear, fluid-resistant, and vapor-permeable for durability and comfort.
• Adjustable Pump: 8 LPM pump with static/alternating modes and variable pressure (30-60 mmHg).
• User-Friendly Controls: LED-backlit switches and dial for simple setup and operation.
• Stable Support: Supports patients up to 350 lbs. with a robust, modular construction.

Product Specifications

• Model: Meridian SatinAir + Base
• Weight Capacity: 350 lbs.
• Mattress Dimensions: 80" L × 36" W × 8" H
• Base: 3" high-density foam
• Air Cells: 17 rows of 5" cells (9 with laser holes for low air loss)
• Cell Material: Nylon/PVC, removable and cleanable
• Cover: Quilted, vapor-permeable nylon; water-resistant, low shear
• Inflation Time: 20-25 min (static inflate)
• Pump Air Output: 8 liters per minute (LPM)
• Pump Cycle Time: 10 minutes (alternating or static mode)
• Pump Pressure Range: 30-60 mmHg (±10%)
• Pump Dimensions: 11" L × 8" W × 4" H
• Pump Weight: 3.8 lbs.
• Warranty: 1-year limited (mattress and pump)
• Additional Features: CPR quick deflate, transport cap on connector hose
